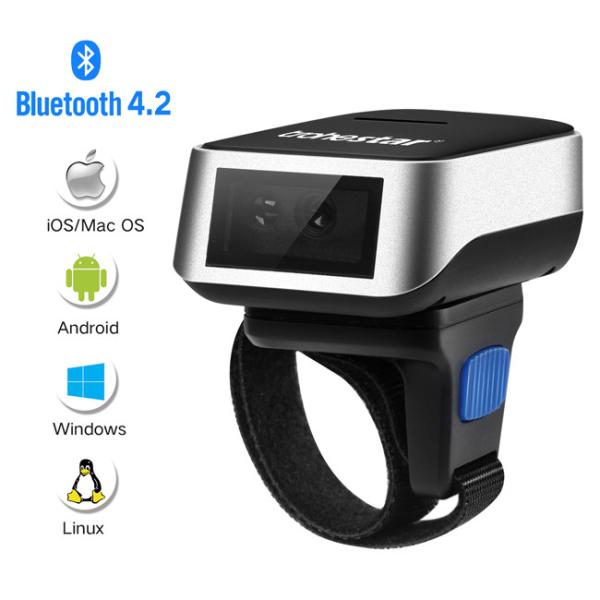

N8 1D CCD Image Barcode Scanner Finger For Warehouse , Supermarket , Retail Store
| Flash | 16MB, storage more than 130000 data |
| Barcode scanning | EAN13,EAN8 ,39,93 ,128,UPCA ,UPCE |
| Compatible system | Windows 7 8 10 / Android / Linux / IOS /Mac OS |
| Sensor | Linear CCD Sensor |
| Light Source | Red Light , wave length 632 nm |
| Decode Speed | 300 times /s max |
| Connection | wired / bluetooth |
| Transmission Distance | 50m in bluetooth mode |
| Memory | 16M |
| Battery | 300mAh battery |
- Plug and Play: No driver or app needed. Wireless and USB type c cable wired -- simple and easy installation right out the box, just insert the wireless dongle or the data cable into a computer, or connect cell phone via bluetooth ,then start scanning. No training necessary.
- Two working mode: Instant upload mode and storage mode. Scan and store barcodes and then update the data to your device. When using the scanner far away the wireless signal range, activate the storage mode, all scanned barcodes will be stored directly into the built-in memory of the scanner.
- Support 1D Printed Barcodes: Code 39, UPC-A/UPC-E (Include Complement Code), EAN13, EAN8, Code 93, Code 128, Codabar. etc
Data upload
Select a transmission mode
Instant upload mode
After connect to a host , the transmission mode will be instant upload mode by default .
If the Bluetooth signal breakes , there will be two short beep from the scanner to alert
If the data transmitted to the host successfully , it will be a short beep from the scanner .If fail the transmission , it will be 3 shorts beeps , and the data won’t be stored and re-transmit , you will need to scan again . If you need instant upload , you can scan the instant upload barcode on the manual .
Storage mode
If the scanner is too far from the host or working in obstructed environment ,storage mode is recommended for the transmission signal may be unstable .In this mode , barcodes data will be stored in the device an d only transmitted to the host when you want to . Scan the code “Storage Mode “ on the manual to enter ,After a scan , if the barcode was successfully collected , it will be a short beep . After scanning all barcodes you want to collect , scan the code “Upload”on the manual to upload data collected .If the memory is empty , the scanner will long beep and vibrate , no data will be uploaded to the host .If the memory space is full , it will be 3 short beeps to alert .To check the quantity of all barcodes collected , please scan the code “memory “ on the manual . To clear all data collected and free up storage space , please scan the code “Clear “on the manual .
